Residential & Commercial Fencing
Durable aluminum fence systems built for any property
Choose Your Grade
Three Grades Available
Same styles, same colors, and same warranty. The grade determines picket wall thickness, rail strength, and post sizing. Most homeowners and most commercial buyers choose Standard or Heavy Duty. Industrial is a different product, built for security perimeters and heights standard fencing can't reach.
Pickets
5/8" sq × .050" wall
Rails
1-1/8" × 1" · .080" side / .062" top
Spacing
Standard or Tight
Heights
3', 3½', 4', 4½', 5', 6'
Posts
2" sq or 2.5" sq
Standard Grade Residential
Most homeowners and most commercial landscaping projects order Standard. 5/8" square pickets, .080" side-wall rails — built to last decades with zero maintenance. Right for yards, pools, HOA communities, and light commercial perimeters.
Standard
Pickets
3/4" sq × .055" wall
Rails
1-1/4" × 1-3/8" · .088" side / .065" top
Spacing
3-5/8" or 1-1/2"
Heights
3', 3½', 4', 4½', 5', 6'
Posts
2", 2.5", or 3" sq
Heavy Duty Commercial
The right step up for large properties, high-traffic perimeters, commercial contracts, and any homeowner who wants heavier construction. Thicker pickets, heavier rails — noticeable difference in hand feel and rigidity. Also the correct grade for wide drive gates.
Commercial
Pickets
1" sq × .055" wall
Rails
1-5/8" HD · .100" wall
Spacing
3-5/8" or 1-1/2"
Heights
4', 5', 6', 7', 8', 9', 10'
Section Widths
6' and 8'
Posts
2.5" sq, 3" sq, or 4" sq
Maximum Strength Industrial
A different product, not just a heavier version of Standard. 1" square pickets, 1-5/8" HD rails, and heights up to 10'. For government facilities, utilities, security perimeters, and commercial staging areas where there other grades isn't enough.
Industrial
FLAT TOP · 3-RAIL
Horizon
A three-rail flat-top style with straight-cut pickets and a clean, architectural profile. With no ornamental top, it delivers a more contemporary look that fits almost any property and looks especially sharp across long spans.
TOP PROFILE
Flat / Straight
RACKABLE
Up to 20"
RAILS
3-rail
TIGHT SPACING
Horizon Pro
Identical profile to the Horizon but with 1-5/8" tight picket spacing for the entire height of the fence (Residential) or 1-1/2" (Commercial).
TOP PROFILE
Flat / Straight
RACKABLE
Configuration-specific
RAILS
3-rail
FLAT TOP · INTERNAL SPEAR
Vanguard
Flat top rail with spear pickets running between the mid and top rail. The spears appear as an ornamental detail inside the fence body
TOP PROFILE
Flat (spear internal)
RACKABLE
Up to 20"
RAILS
3-rail
POPULAR · TRADITIONAL SPEAR

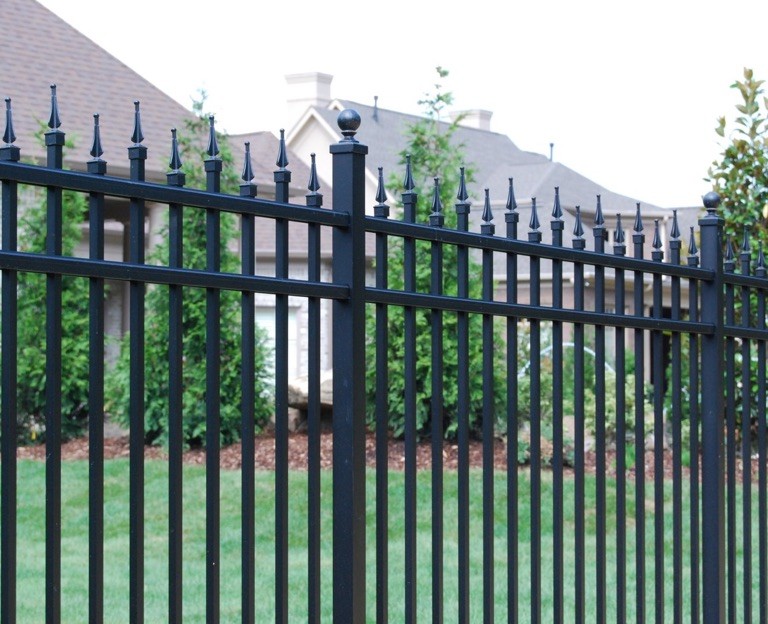

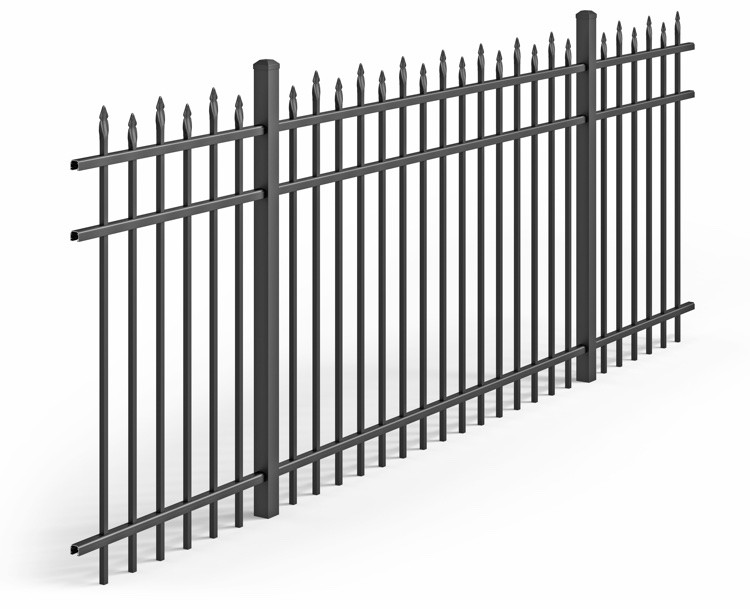

Charleston
Classic pressed spear tops rising above the top rail. The defining ornamental aluminum profile. Works on virtually any property from traditional to contemporary.
TOP PROFILE
Spear above rail
RACKABLE
Up to 20"
RAILS
3-rail
TIGHT SPACING
Charleston Pro
Identical profile to the Charleston but with 1-5/8" tight picket spacing for the entire height of the fence (Residential) or 1-1/2" (Commercial). Same classic character, tighter containment.
TOP PROFILE
Spear Above Rail
RACKABLE
Configuration-specific
RAILS
3-rail
STAGGERED SPEAR
Savannah
Alternating tall and short spear-top pickets create a rhythmic, two-height silhouette. Adds visual depth and estate-inspired character without changing the fence line.
TOP PROFILE
Staggered Spear
RACKABLE
Up to 20"
RAILS
3-rail
CONCAVE SPEAR
Eclipse
Spear-top pickets in a concave arc — tips tall at the posts, dipping toward the center of each panel. Creates a flowing inward curve across the fence line. Distinctive on long estate perimeters and formal driveways.
TOP PROFILE
Concave Spear Arc
RACKABLE
Up to 20"
RAILS
3-rail
CONVEX SPEAR
Lexington
Spear-top pickets in a convex arc — tips peak upward at the center of each panel, lower at the posts. The opposite silhouette of the Eclipse. Projects confidence on front-facing perimeters and open commercial lots.
TOP PROFILE
Convex Spear Arc
RAILS
3-rail
ORNAMENTAL LOOP TOP

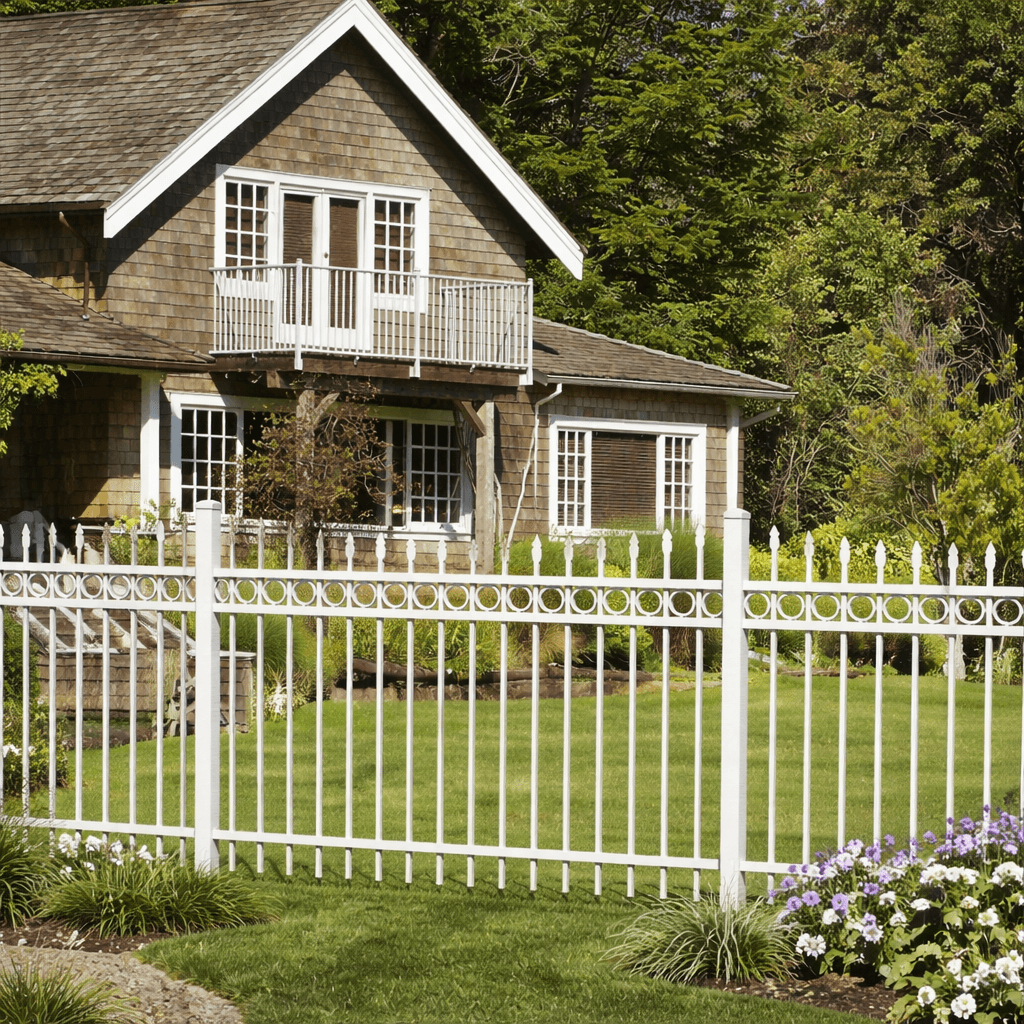

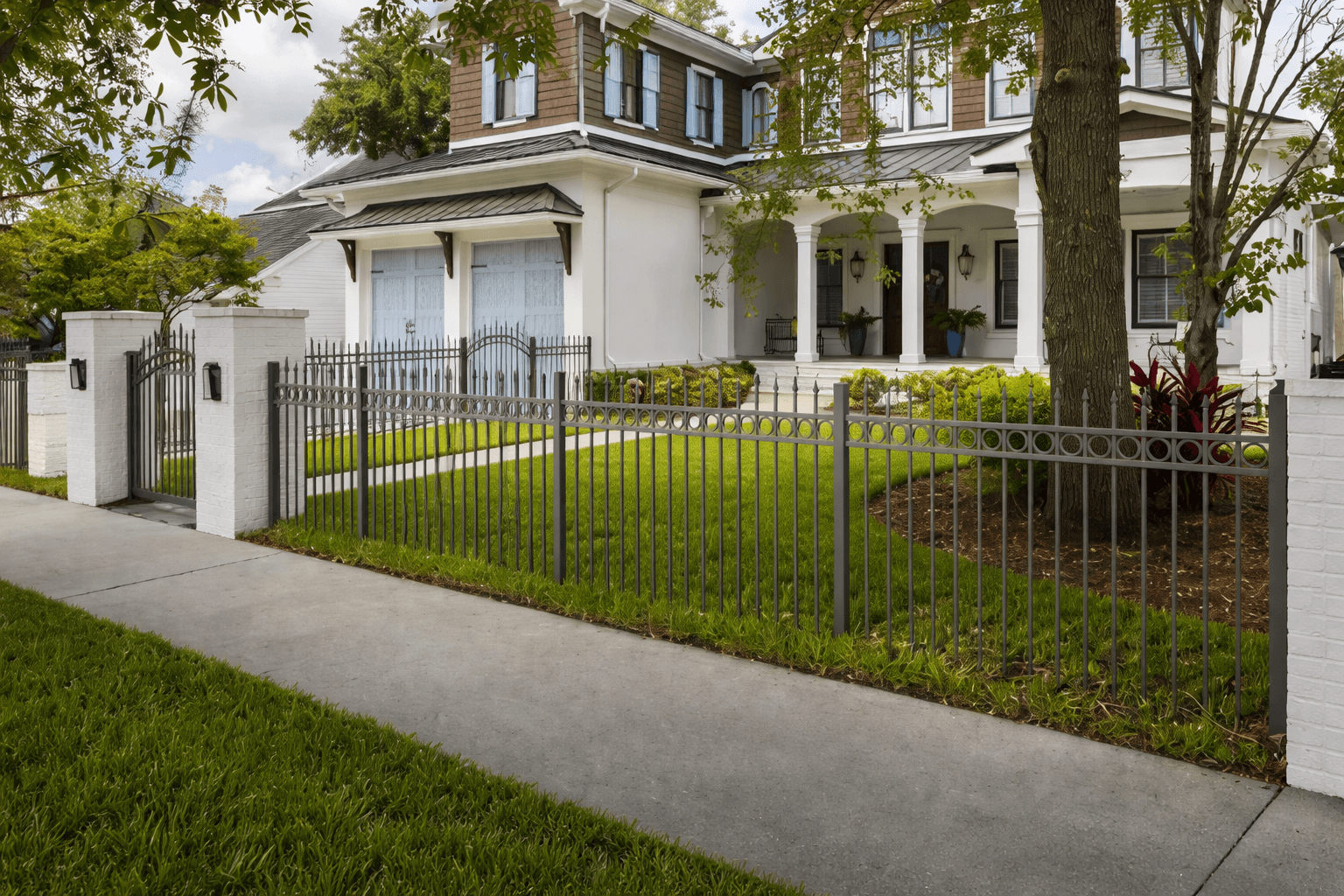

Cambridge
Loop-top pickets with an internal spear element through each loop. The decorative rings create a Victorian ornamental character that no other style in the catalog matches. Most detailed and distinctive profile we carry.
TOP PROFILE
Loop + Internal Spear
RACKABLE
Up to 20"
RAILS
3-rail
See how we measure up to our competitors
Grandview Rail
Competitor Rail
Built Stronger. Built Smarter
WHY OUR RAIL IS DIFFERENT
Left: Typical competitor rail — thinner walls, fewer ribs, open bottom collects debris Right: Grandview Aluminum 8-rib rail
What you can't see is exactly what matters.
Most aluminum fence companies lead with the pretty top profiles. The rail is what actually determines how long your fence lasts. Ours on the right. Everyone else on the left.
Concealed Stainless Fasteners
8-Rib Heavy Duty Rail
Thicker Wall Aluminum
Painted stainless steel screws lock each picket into the rail. No exposed hardware to rust, back out, or corrode
Residential grade: .080" wall. Commercial: .088" wall. Cheap rails run .060" or less — they dent under impact and warp in temperature swings.
Our rail extrusion has 8 internal ribs that distribute load across the full rail width. Competitors use 3-4 ribs with thinner walls that flex and fatigue over time.
